INFRAPIPE is an independent NZ manufacturer that began supplying fully certified flexible pipes and tanks to the market in 2022. Using their brand-new European KRAH machine in Auckland they can quickly produce tanks up to 3.2m in diameter, the largest in Australasia, ideal for underground fire supply.

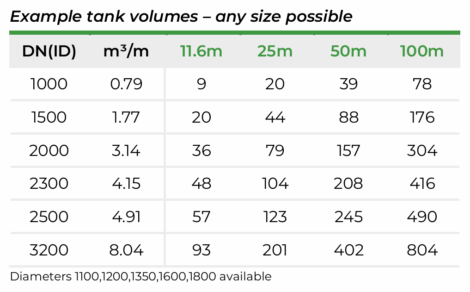

VOLUMES
Tanks can be made to any size by easily and quickly joining sections [on site] that are up to 15m long (a 2.5m ID section 12m long only weighs 6 tonnes for instance). Tanks can be joined in any fashion creating U, L, E, F, O or T shaped tanks (for instance) allowing the designer to make the best use of space. Minimum cover is typically 700mm, typical fall 1%.
Infrapipe Fire Supply Tanks
CHECKLIST FOR TANK DESIGN
- Suction, vortex plate etc.
- Sump for suction
- Auto Top-up system
- Manual fill method
- Overflow
- Vent
- Pump Return
- Level sensor
- Effective capacity
- Fall, cover and ILs
- Access & risers
INFRAPIPE then calculates
- Pipe (tank) stiffness & OD
- Trench design
- Buoyancy mitigation (if required)
STANDARDS
- INFRATANK HDPE fire tank solutions meet the requirements of NZS4541:2020 (sprinklers) or SNZ PAS 4509:2008 (buffer tanks for fire-fighting)
- INFRAPIPE is certified to ISO 9001:2015
- Tanks and pipes are certified to AS/NZS5065:2005
- Pipes tested to ISO9969
- Trench design to AS/NZS2566
BENEFITS OF HDPE INFRATANKS
- 100 YEAR LIFE
- Immune to biological or chemical attack
- Absolutely no maintenance or decay
- Best seismic resilience
- Penetrations are homogenous
- Leadtime 4-6 weeks
- Fully recyclable
- Best environmental impact
See Materials Guide for more details.
Any questions please email [email protected] and don’t forget we are still making KRAH™ pipes to DN3200, tanks to any cubic metreage even 200M³ and up, solid wall from DN525 to 2m+ and new SN4/SN8 & SN16 corrugated culvert 100-1000mm.
INFRAPIPE™ is fully committed to maintaining the highest standards of certification.
